Corrosion Immune Fiberglass Doors and Frames



Click here for Information on Heavy-Duty Custom FRP Doors

Polymer Doors


Custom Panel Systems

Fiberglass Door Features

  • Corrosion immune
  • Resistant to chemicals, moisture, temperature, bacteria and gasses
  • Abuse resistant
  • Unlimited design capabilities
  • Ideal where FDA / OSHA / USDA regulations must be considered
  • Hardware, electrical systems can be housed within door and frame


Polymer Door Features

  • Extremely versatile designs to suit the application
  • Conventional bi-fold Dutch and transom and sidelite doors
  • Large specially designed sliding panels
  • Siding textures and colours easily matched
  • Doors and panel systems custom designed to meet any requirements

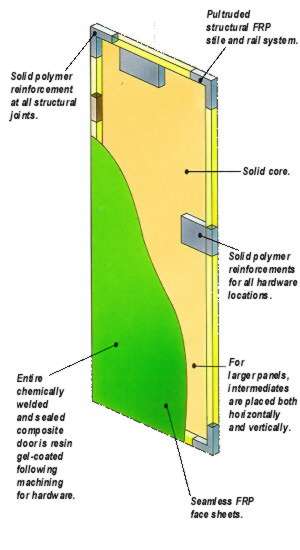

Solid Core Fiberglas Door and Panel Systems with Seamless Faces - Solid Polymer Reinforcements and Welded Corners
Fiberglass Doors

Polyfire Doors
(30 min thru 90 min)

The First Polymer Doors tested and approved under ANSI/UL 10B for
1-1/2 hour "B" fire label

Features

  • Single doors to 4'-0" x 8'-0"
  • Double doors to 8'-0" x 8'-0"
  • Passed ANSI/UL 1-1/2 hour fire and hose stream tests
  • Passed the 250 degree temperature rise test
  • Passed the slam and durability test per ANSI A151.1 standards
  • Self-sealing against flames fumes and smoke
  • Must be installed in fire rated frames
  • Maximum 24" x 24" fusible link louvers available
  • 100 sq. in. maximum lites for 60 and 90 minute doors. 1,296 sq. in. for 30 and 45 minute doors.
  • Mortise rim and surface mounted vertical panic devices

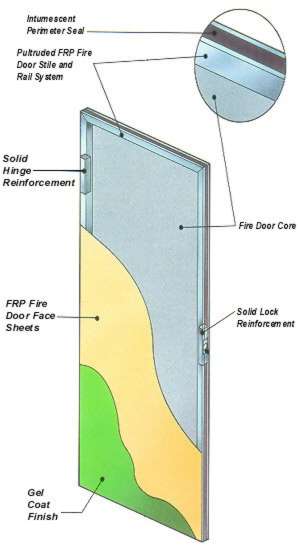

PolyFire Rated Fire Doors with Pultruded Stiles and Rails

Currently labeled to meet ASTM E-152
90 minute requirements
(Including the tough hose stream test)
PolyFire 90 min Fire Doors Where fire rating must be combined with corrosion resistance and security, Corrim all-FRP fire doors are ideal. Every fire door 30 minute and higher has an intumescent, self-sealing gasket system, combined with a fire rated, steel frame. The solid mineral core door combined with structural FRP stiles and rails, is chemically welded and sealed as a composite and is resin gel-coated following machining for hardware.



Hardware



  • Wide range of hardware
  • Fiberglass blocking for hardware mounting
  • Over 1000 pounds of screw holding ability
  • Hardware machinings are sealed
  • Doors and frames are pre-machined at the factory

Surface Mounted Hinges for Fiberglas Doors       Fiberglas Doors with Mortised Hardware
Double action all polymer hinge mortised inside door leaf

Fiberglass Doors, Frames, Panels & Louvres

Corrosion Resistant Doors, Frames & Hardware

Water & Sewage Treatment Plants - Public Swimming Pools





REPRESENTATION ACROSS CANADA ~ SALES  - SERVICE  -  INSTALLATION



Please Contact us - for further information, specifications and architectural details.
