This door has a triple function – revolving door, panic exit and when rolled out, an open access area for moving equipment. The door is furnished with four casters.

D. The Clear See-thru Door (Type C). Multiple uses – where seeing thru the door is helpful. Eliminates drafts and dust and can be used for clean-rooms; two, three and four-way models are available.

E. The Ruby See-thru Door (Type R). The door for all photographic uses, except panchromatic color films. Cameramen can now see thru the CON/ED Ruby revolving door.

F. Fire-Retardant – 1-1/2 hour B-rating (Type FR). The CON/ED UL approved Fire Retardant door is the only steel UL approved permanently mounted revolving darkroom door on the market today.

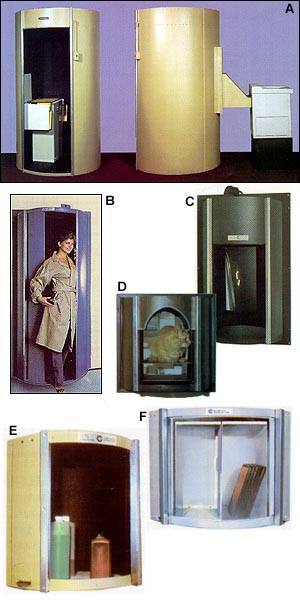

A. Mini-Darkrooms

For Photography, Photo Typography, Radiology, Nuclear Medicine, Cardiology, X-Ray Processing, and Mammography. Also ideally suited for use inside Mini-darkrooms for table top processors without tunnel.

The Mini-darkrooms can be attached to practically all makes of film processors. Requiring minimum space (approx. 4' x 7') it can be conveniently located in the corridor outside surgery, in a nuclear medicine scanning room, or anyplace for light-proof access and valuable time savings. It can also be made mobile. Manufactured of aluminum panels and steel, it can be lead-lined in 1/32" thickness for radiation requirements. The Mini-darkroom is equipped with 2 safelights and a blower with changeable filter. As optional equipment, film cabinet with work top and built-in cassette pockets make the darkroom complete.

The CON/ED Pre-fabricated darkrooms, clean work rooms and offices, provide light-proof, dust-proof and sound retarding environment. Manufactured of durable, building codes approved materials. Requires no painting. Available in woodgrain finishes and excellent painted panels with aluminum extrusion supports. Proven in thousands of economically advantageous installations. Can also be easily dismantled and moved.

B. Pre-Fabricated Darkrooms

Model	Size	Model	Size
C-64	8' x 8'	C-80	8' x 10'
C-96	8' x 12'	C-100	10' x 10'
C-120	10' x 12'	C-144	12' x 12'
C-192	12' x 16'	C-240	12' x 20

PASS-THRU UNITS

C. PASS-THRU/FILM DRYERS.

Slim-line and Standard 2-way pass-thru units and 3-way Standard pass-thru units, for passing materials from one room to another. With heater and blower added, they become very efficient film dryers.

D. SPT-20 SPECIMEN AND FILM PASS-THRU UNITS.

Designed for specific needs of photo finishers and medical laboratories.

E. CPT-28 and CPT-32 CASSETTE PASS-THRU UNITS.

F. CPT-28 model handles 24 cassettes up to 11" x 14" and CPT-32 will handle four magazines up to 3" thick by 22" high or 12 magazines 14" x 17". Absolutely fail-safe. Can be obtained without lead lining or with 1/32" thick lead lining.

SECURITY

Made of sheet steel in all basic sizes, these doors may be used as security entrances in banks or currency exchanges.

.

SECURITY ENTRANCE
